Renogy Rover Li 40 Amp MPPT Solar Charge Controller
An advanced charge controller that maximizes the performance of your solar system.
Maximize Your System Efficiency
The Rover 40A Solar Charge Controller is the ideal choice for both 12V and 24V systems, offering unparalleled versatility, superior performance, and peace of mind. By maximizing power from your solar panels, it ensures optimal charging efficiency, backed by smart features and the best warranty on the market. Perfect for customers who value top-class functionality and innovative design.
Simple and Intuitive Programming
Customize settings and monitor charging parameters with ease.
Multiple Protections for Various Battery Types
The Rover Charge Controller offers comprehensive protection for your batteries, guarding against overcharging, over-discharging, short-circuiting, overloading, reverse polarity, and reverse current, while also providing temperature compensation for enhanced efficiency and safety.
Enhanced Connectivity for a Superior Experience
Monitor, control, and optimize charging anywhere with Renogy Charge Controller's Bluetooth connectivity.
Powerful Heat Dissipation
Operates at peak performance even in extreme temperatures, ensuring your system is always running smoothly and efficiently.
Exceptional Resilience and Long-lasting Performance
Crafted with rust- and corrosion-resistant materials and coatings, the Rover Charge Controller ensures long-lasting durability and reliable performance for your solar energy system.
DETAILS:
- 99% tracking efficiency, 98% peak conversion efficiency.

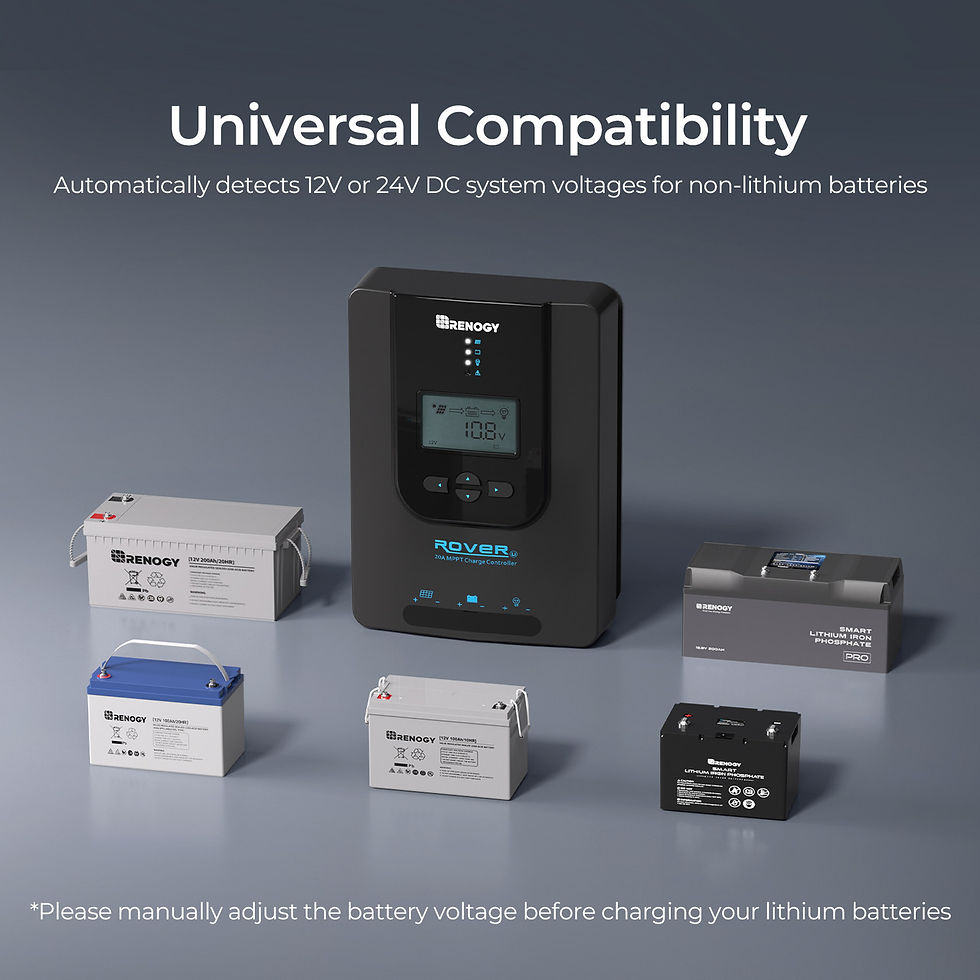

- Auto-detects 12V/24V system (non-lithium batteries).
- Comprehensive protection to secure your system.
- Safe and efficient 4-stage charging.
- Diverse load control options and remote monitoring.
Renogy Rover 40A MPPT Solar Charge Controller (G3 - RS485)
ELECTRICAL PARAMETERS:
Nominal System Voltage: 12/24V Auto-Detect
Rated Charge Current: 40A
Solar Input Voltage Range (Voc): 15VDC~100VDC
Max. PV Input Power: 12V/520W, 24V/1040W
Power Consumption: <100mA/12V; <58mA/24V
Battery Input Voltage Range: 10VDC~32VDC
Communication: G1 Version: RS232, G2 Version: RS485
Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
ENVIRONMENTAL DATA:
Protection Level: IP32
Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity: ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V
opc:
MECHANICAL SPECIFICATIONS:
Dimensions: 238 x 172 x 77 mm;9.38 x 6.78 x 3.05 in
Weight: 2.0kg / 4.41 lb
Max. Terminals Size: 8 AWG 10mm2
opc:
ACCESSORIES:
Temperature Sensor: 9.8ft cable length
