3000W 12V Pure Sine Wave High Frequency Inverter Charger
The only compact and minimal noise high frequency split phase inverter charger.
Please Note: 240VAC output is available only when the inverter/charger is supplied by a split-phase 120/240VAC source.
Operates with Remarkably Low Noise
Rediscover a bedroom-caliber, quiet environment with Renogy's high-frequency inverter, ensuring peaceful nights and uninterrupted slumber.
Enhanced Lithium Battery Activation and Heating Capability
Optimize your battery performance and extend longevity with advanced lithium battery activation and heating features, ensuring reliable operation in any environment.
DETAILS:
- Compact, high-frequency design for quieter, efficient operation.
- Available with split phase AC input for specific setup compatibility.
- Delivers up to 6000W in grid-connected scenarios for robust power.
- Ensures consistent, smooth power with pure sine wave technology.
- Built-in Bluetooth for easy monitoring with Renogy ONE M1 & Core.

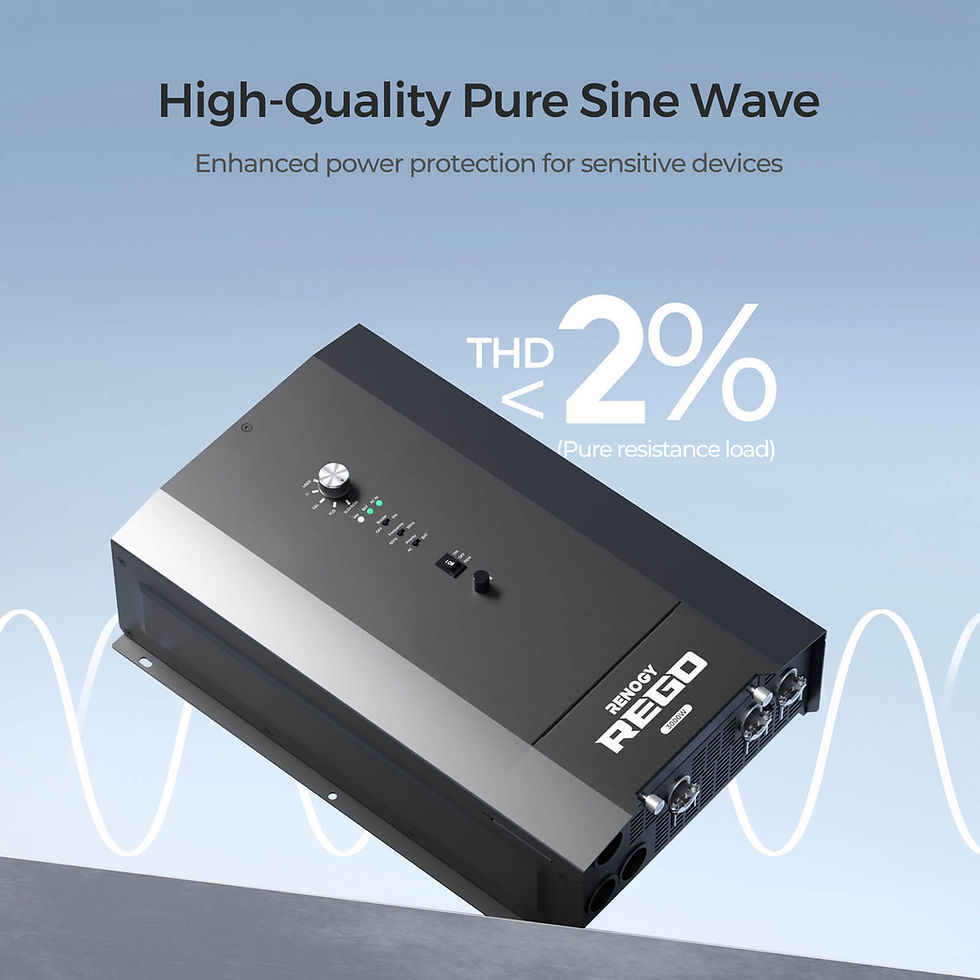

REGO 3000W 12V Pure Sine Wave HF Inverter Charger Split-phase Design
INVERTER:
Continuous Power: 3000W
Surge Power(100ms): 9000VA
Surge Power(5 seconds): 4500VA
Surge Power (10 seconds): 3600W
AC Output Voltage Range: 120V± 3%
Output Frequency (Nominal): 50/60 Hz ± 0.1%
Output Waveform: Pure Sine Wave
Efficiency: ＞92%
THD: ＜3%
DC Input Voltage: DC12V
DC Input Voltage Range: 9~17Vdc(Full load 11V to 15.8V DC)
No Load Current Draw: Normal: <20W; Power Saving: <10W
CHARGER SPECIFICATIONS:
Output Current: 150A @25°C, 5A to 150A adjustable, 5A intervals, default 150A
Optimal Efficiency: >90%
Nominal Input Voltage: Split phase: 180-280 VAC; Single phase: 90-140 VAC
Input Frenquency Range: 50/60Hz，±5Hz
Input Wave Form: Sine Wave (Utility or Generator)
TRANSFERSWITCH SPECIFICATIONS:
Transfer Time: ~ 10ms
Transfer Rating: 50A Maximum Bypass @120V AC
GENERAL SPECIFICATIONS:
Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
Noise: <47dB
Operating Temperature: Full load: -4°F to 113°F / -20°C to 45°C; Down load: 113°F to 140°F / 45°C to 60°C
Dimensions: 19.37 x 13.11 x 5.31 in / 492 x 333 x 135 mm
Storage Temperature: -40 ~ 70°C / -40 ~ 158°F
Weight: 22.7lbs/10.3Kg
WIRED REMOTE CONTROL:
Dimensions: 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
Wire length: Approx 16.4ft
