Battery Type: Lithium Iron Phosphate

Rated Capacity: 100AH

Nominal Voltage: 12.8V

Voltage Range: 10-14.8V

Energy: 1280WH

Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles

Connection Method: Parallel

Automatically Self-heating Function: No

Dimensions: 11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm

Weight: 26 lbs. / 11.8 kg

Protection Rate: IP54

Housing Material: PC+ABS

Charge Voltage: 14.4V

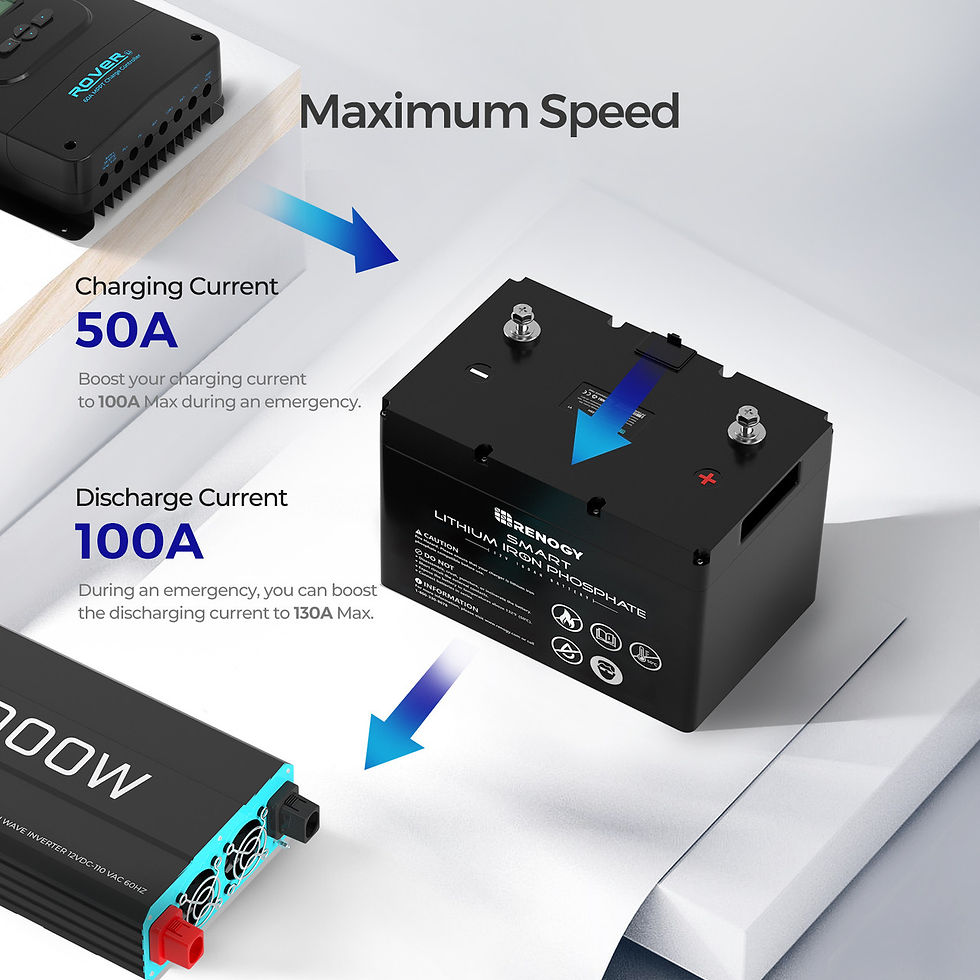

Maximum Continuous Charging Current: 50 A

Charge Cut-off Voltage: 14.4V

Maximum Continuous Discharging Current: 100 A

Discharge Cut-off Voltage: 10V

Standard Operation Temperature: 25℃±5℃

Storage Temperature: -13~149℉ / -25~65℃

Charge Temperature: 32~131°F/ 0~55°C

Discharge Temperature: -4~140°F/ -20~60°C

Built-in Bluetooth: No

Communication Port: RJ45 (Modbus Protocol)

Bolts: M8 x2

Activation switch: x1

Material and workmanship warranty: 5-year

Certifications: UN38.3, MSDS, CE, FCC, PSE, UL (Battery Cell), TUV (Battery Cell)
